French Drains in Dallas Clay: What Works and What Fails

Most of the standing water in a Dallas backyard is not a plumbing problem. It is a soil problem wearing a plumbing disguise, which is why a French drain in Dallas clay so often works for two seasons and then quietly stops. The ground here moves, closes, and reopens on a schedule that no drain pipe was designed around, and the fix has to start above the trench rather than inside it.

Schedule a design consultation and we will read the grade before anyone talks about pipe.

Is the Problem Surface Water or Groundwater?

Surface water sits on top of the ground after rain and moves according to grade. Groundwater sits within the soil profile and moves according to permeability. A French drain is built to intercept the second, and most Dallas backyard complaints are actually the first. Diagnosing which one is in play decides whether a trench is the answer or a waste.

The test is uncomplicated. Water that appears within minutes of rainfall, follows a visible path, and disappears within a day of the sky clearing is surface water. Water that appears hours later, has no obvious path, and lingers for days after the rain stops is coming through the profile.

Those two conditions call for opposite work. Surface water is corrected with grade, swales and hard collection points. Subsurface water is what a French drain is for. Installing the second where the first is the problem produces a trench that fills from the top, silts in, and fails.

Why Does Blackland Clay Break Drainage Systems?

Houston Black, the state soil of Texas and the dominant substrate beneath Dallas, runs 46 to 60 percent clay. Its permeability is described as very slow precisely because of that clay content. Water does not travel through it in any useful volume, which means a drainage system here is nearly always conveying water rather than letting the ground absorb it.

That single property changes every design decision downstream. On a sandy profile, a trench full of stone is a reservoir that drains itself. In Blackland clay it is a bathtub with no outlet unless one is deliberately built.

The movement is measurable, not theoretical

The shrink-swell behavior of this soil is documented rather than anecdotal, and the figures explain most of what goes wrong underground.

• Cracks in Houston Black can open more than four inches wide and twelve inches deep, and in most years they stay open for 90 to 150 days.

• The series covers roughly 1.5 million acres across 33 Texas counties, so this is the default condition across the Dallas market rather than an unlucky lot.

• Construction on this soil is routinely affected by cracking driven by the shrinking and swelling cycle, which is why lime stabilization, crushed rock layers and steel-reinforced foundations are standard local practice.

A trench cut through soil that opens four inches and closes again twice a year is not a stable environment. Pipe shifts, joints separate, bedding migrates, and the fall the installer set on day one is not the fall the system has in year three. Detailing for that movement is the same discipline behind our grading and retaining wall work, where the soil's behavior sets the specification rather than the other way around.

What Has to Be Correct Before a French Drain Is Considered?

Grade comes first, always. The International Residential Code sets the baseline: the ground around a foundation should slope away from the building and drop at least six inches within the first ten feet. Where lot lines or physical barriers make that impossible, the code contemplates drains or swales to carry the water away instead. Impervious surfaces within ten feet of the foundation are to slope at least two percent away.

That sequence is deliberate. A drain is the alternative the code reaches for when grade cannot do the job, not a substitute for grade that was never established. A surprising number of Dallas drainage complaints resolve at this step alone.

The checks that come before a trench

• Confirm the fall away from the foundation on every elevation, not only the side where water is visible, because the low corner is often not the corner that is failing.

• Follow every downspout to its discharge point and note whether it is releasing within the first ten feet of the slab, which converts roof area into foundation load.

• Check whether hardscape added after the house was built has interrupted the original grade, a common outcome when a patio, drive or pool deck is set to a single elevation across a sloping yard.

• Identify where water leaves the property today, because that point governs everything a new system can legally and physically do.

Only once those are resolved does a subsurface system earn its place. Where hardscape is part of the problem, it is usually also part of the solution, and the correction belongs in the hardscape design rather than in a trench dug alongside it afterwards.

How Is a French Drain Built to Survive Clay?

A French drain in Blackland clay has to be treated as a conveyance channel with a guaranteed outlet, not an infiltration device. It needs continuous positive fall from the highest inlet to a daylight discharge, a filtration layer that keeps fine clay particles out of the stone, and a bedding detail that tolerates seasonal ground movement without losing that fall.

Each of those requirements maps to a specific failure that shows up on Dallas properties within a few years of a poorly detailed installation.

The four failures that account for most of it

• No outlet. A trench that terminates in clay with nowhere to discharge holds water at the low end permanently. The system was never a drain, it was a storage pit, and it will smell like one by the second summer.

• Lost fall. Fall set by eye rather than by instrument, in soil that moves seasonally, does not survive. The fall has to be surveyed, and the design has to carry enough of it that a season of movement does not flatten the run.

• Silting. Fine clay particles migrate into open stone and pack it. Without an appropriate filtration layer around the aggregate, the voids that make the trench work close up, and the drain becomes a buried line of dirt.

• Perforated pipe where solid pipe belongs. Roof water collected from a downspout should be carried in a sealed line to its discharge, not released into the soil partway along the run. Connecting a downspout to perforated pipe quietly irrigates the ground beside a foundation that was the reason for the project.

The recurring theme is that a French drain is a system, and systems fail at their weakest connection. The trench is rarely the weak point. The outlet, the fall and the filtration are.

Where Is the Water Allowed to Go?

This is the question that stops more Dallas drainage projects than any technical detail, and it is worth answering before excavation rather than after. Every system has to terminate somewhere, and the options on an established residential lot are limited.

Dallas does regulate storm drainage, but the relevant code section governs subdivision platting and public infrastructure design rather than routine grading on an individual residential lot. Its standards are written around the one-percent annual chance storm event, with erosion control obligations triggered at three acres of ground disturbance and detention thresholds keyed to acreage and added impervious surface. A backyard drain is generally not the subject of those provisions.

That does not make the discharge point a free choice. Concentrating water and directing it onto a neighboring property creates a dispute that no permit exemption resolves, and on a tight lot the distance between a viable outlet and a boundary line can be the whole design constraint. On properties where there is genuinely nowhere to daylight, the answer is usually a different one: rework the grade, add capacity at the surface, or change how the hardscape sheds water. That is a land design question rather than a drainage-contractor question.

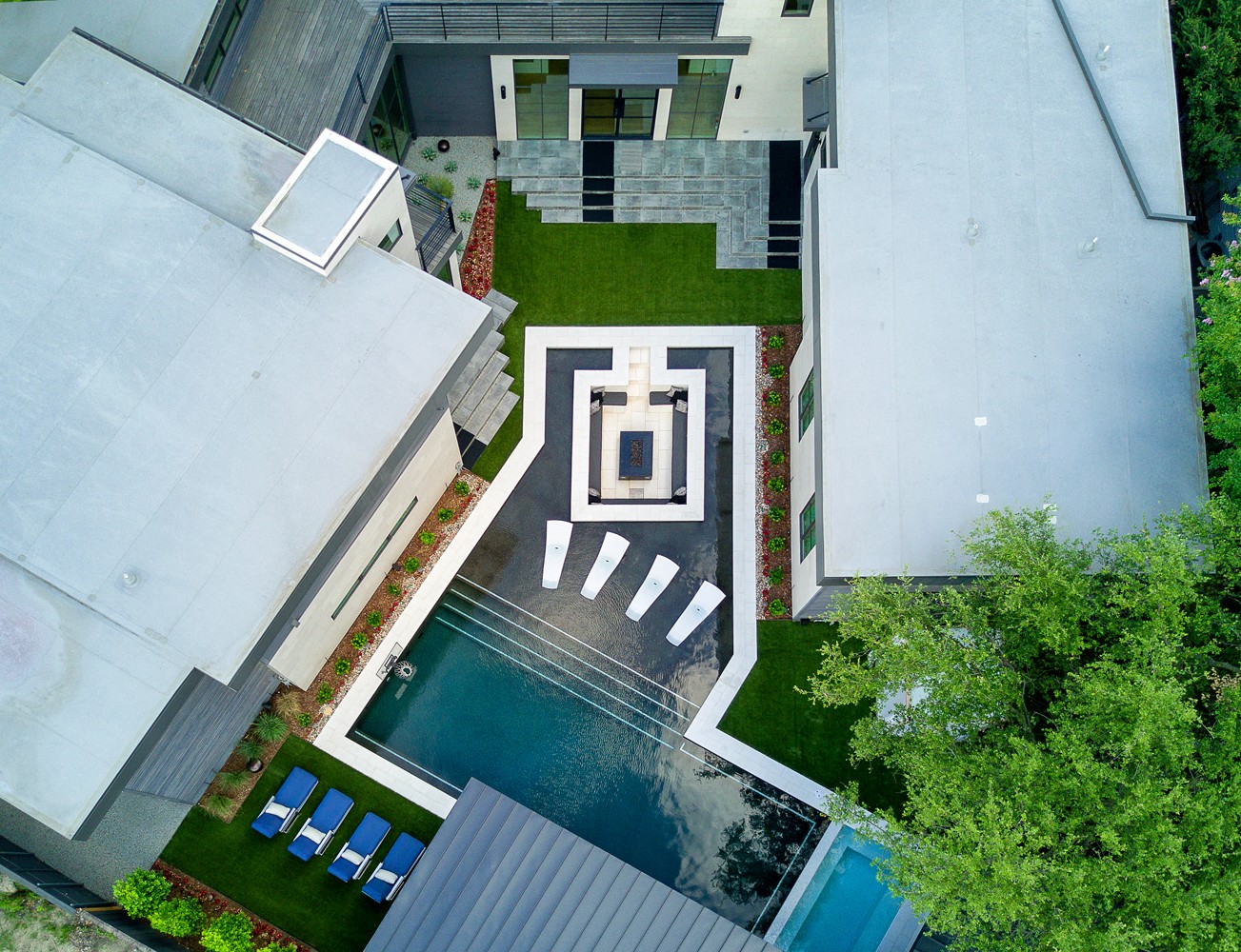

Our Dallas modern estate land design and build project is an example of grade, hardscape and water movement resolved together rather than in sequence.

How This Connects to the Rest of the Yard

Drainage is rarely a standalone scope. The same soil behavior that governs a trench governs what happens under a terrace and inside a planting bed, which is why the detailing in our hardscape and clay soil guide and the soil behavior covered in our guide to mastering Dallas clay soil read as one body of work rather than three separate topics.

Treating them separately is what produces the common sequence of a drain installed one year, a patio cracking the next, and beds that stay saturated through both. Resolved on a single plan, the grade that protects the foundation, the fall that feeds the drain and the elevations that set the hardscape are the same set of decisions.

Frequently Asked Questions About French Drains in Dallas

Do French drains work in Dallas clay soil?

A French drain works in Dallas clay when it is built as a conveyance channel with a guaranteed outlet rather than as an infiltration trench. Houston Black clay runs 46 to 60 percent clay with very slow permeability, so the surrounding ground will not absorb collected water. Fall, filtration and a daylight discharge decide whether the system performs.

How much slope does a yard need away from the house?

The International Residential Code sets the baseline at a six-inch drop within the first ten feet from the foundation, with impervious surfaces in that zone sloping at least two percent away. Where lot lines or physical barriers prevent that, the code contemplates drains or swales carrying the water away instead. Grade is checked before a drain is designed.

Why did my French drain stop working after a few years?

Four causes account for most of it: no real outlet, so the trench stores water; fall lost to seasonal soil movement; fine clay silting into the stone and closing the voids; and roof water fed into perforated pipe that releases it back into the ground. Houston Black cracks can open over four inches wide and stay open 90 to 150 days a year.

Do I need a permit for backyard drainage work in Dallas?

Dallas storm drainage regulations are written primarily around subdivision platting and public infrastructure, with thresholds keyed to acreage and added impervious surface, so routine residential grading generally falls outside them. Confirm your specific situation with the City before work begins. Discharge onto a neighboring property remains a practical and legal constraint regardless of permit status.

Start With the Grade

The most expensive drainage mistake in Dallas is not choosing the wrong pipe. It is installing any pipe at all before establishing where the water currently goes, where it needs to go, and whether the ground between those two points can be shaped to carry it. Once those are settled, the specification usually writes itself.

Request a design consultation for grading and drainage and we will start by reading the property rather than quoting a trench.

By Bryce Arrington, Studio Manager, Blount Designs

Published September 2026
